Passenger Compartment

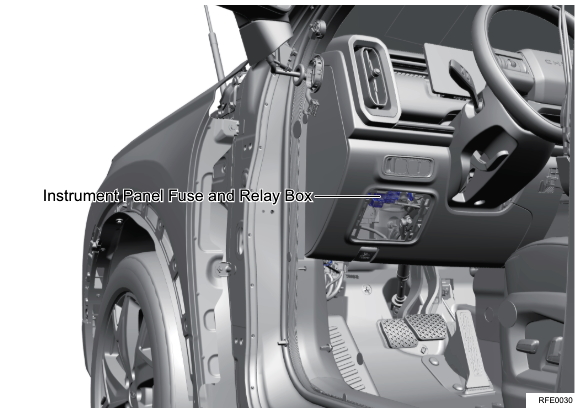

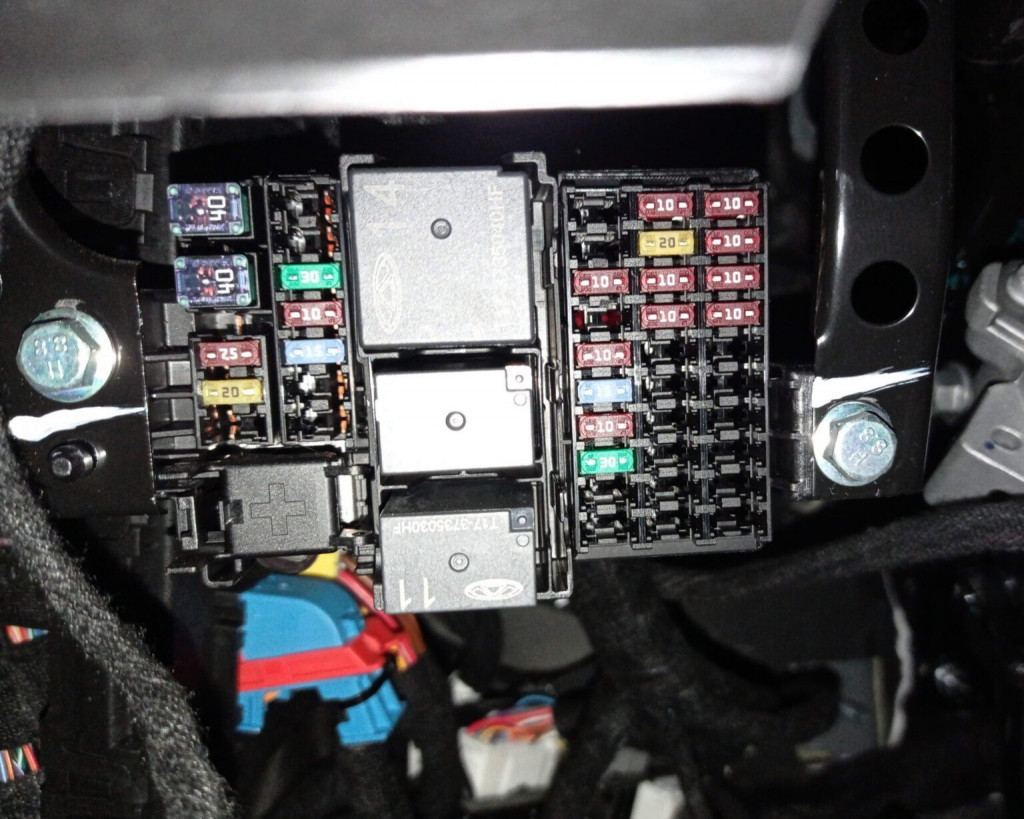

The fuse box is located in the lower part of the dashboard on the driver's side. Remove the protective cover for access.

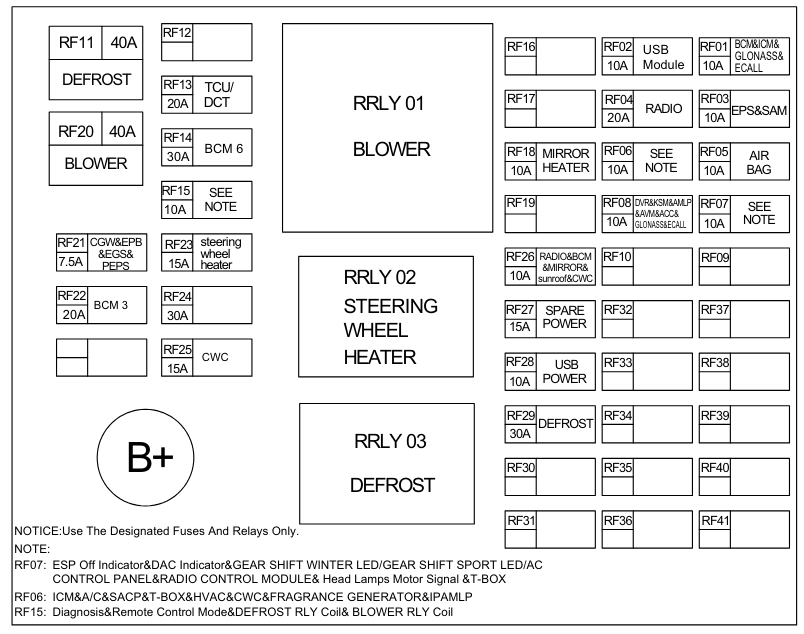

Fuse Assignment
RF01 10A — Driver Monitoring System (BDM/DMS/ETC/GLONASS/ECALL)
RF02 10A — Rear USB charging module
RF03 10A — EPS / Tilt Sensor
RF04 20A — Entertainment Domain Controller
RF05 10A — Airbag Controller
RF06 10A — Instrument panel / Head lighting / Flavour generator / T-BOX / A/C / Wireless charging
RF07 10A — Entertainment Domain Controller / TBOX / A/C / Display / Electronic Shift (7DCT)
RF08 10A — Reversing radar / 360° camera / Electronic shift (7DCT)
RF09 10A — PHEV Battery Management System
RF10 10A — Front USB charging module

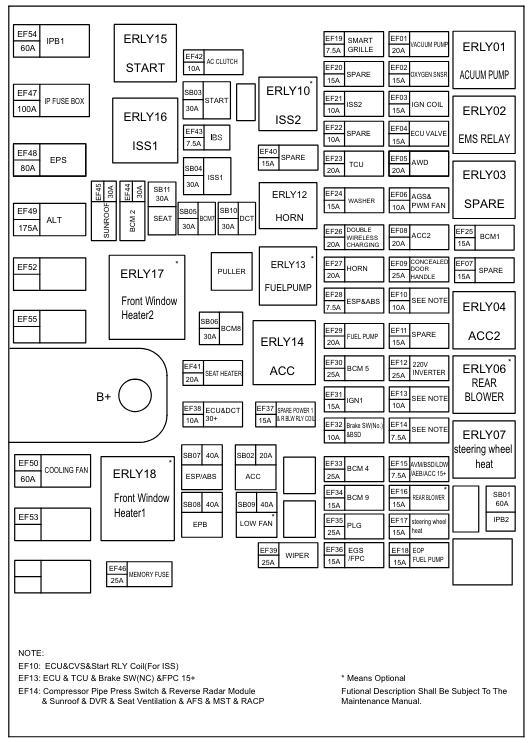

Engine Compartment

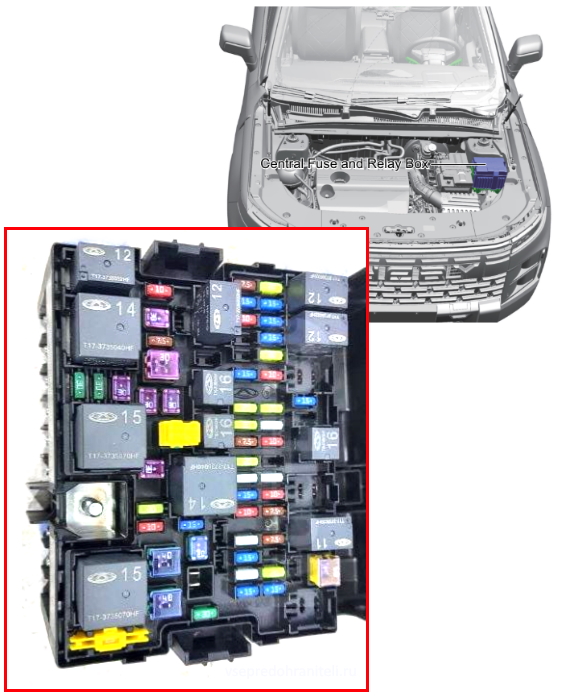

The engine compartment fuse box is in the engine bay. Refer to the labels on the cover for fuse assignments.
Jaecoo J7 Voice Commands
Say "Hey Jaecoo" followed by any of the commands below.
General Commands
"Hey Jaecoo, open the sunroof." "Hey Jaecoo, close the sunroof."
"Hey Jaecoo, turn on the air conditioning." "Hey Jaecoo, turn off the air conditioning."
"Hey Jaecoo, increase the temperature to [degrees]." "Hey Jaecoo, decrease the temperature to [degrees]."
"Hey Jaecoo, turn on the headlights." "Hey Jaecoo, turn off the headlights."
"Hey Jaecoo, navigate to [destination]." "Hey Jaecoo, play [song/artist/playlist]."
"Hey Jaecoo, call [contact name]."
Navigation Commands
"Hey Jaecoo, take me home." "Hey Jaecoo, find the nearest petrol station."
"Hey Jaecoo, find a nearby restaurant." "Hey Jaecoo, what's the traffic like to [destination]?"
"Hey Jaecoo, show me the map."
Media & Entertainment
"Hey Jaecoo, play the radio." "Hey Jaecoo, change to [radio station]."
"Hey Jaecoo, increase the volume." "Hey Jaecoo, decrease the volume."
"Hey Jaecoo, skip to the next song." "Hey Jaecoo, pause the music."
Climate Control
"Hey Jaecoo, set the temperature to [degrees] Celsius."
"Hey Jaecoo, turn on the seat heater." "Hey Jaecoo, turn off the seat heater."
"Hey Jaecoo, turn on the defroster." "Hey Jaecoo, turn off the defroster."
Phone & Communication
"Hey Jaecoo, call [contact name]." "Hey Jaecoo, answer the call."
"Hey Jaecoo, hang up the call." "Hey Jaecoo, read my last message."
Additional Features
"Hey Jaecoo, open the boot." "Hey Jaecoo, close the boot."
"Hey Jaecoo, turn on/off ambient lighting." "Hey Jaecoo, activate voice assistant."
⬇ Download full PDF
Installing a Dashcam
Watch the video guide below for step-by-step dashcam installation on the Jaecoo J7.
VIDEO
Tip: For wired installation, use the accessory fuse slot in the passenger compartment fuse box (RF10 — Front USB / accessory supply).
